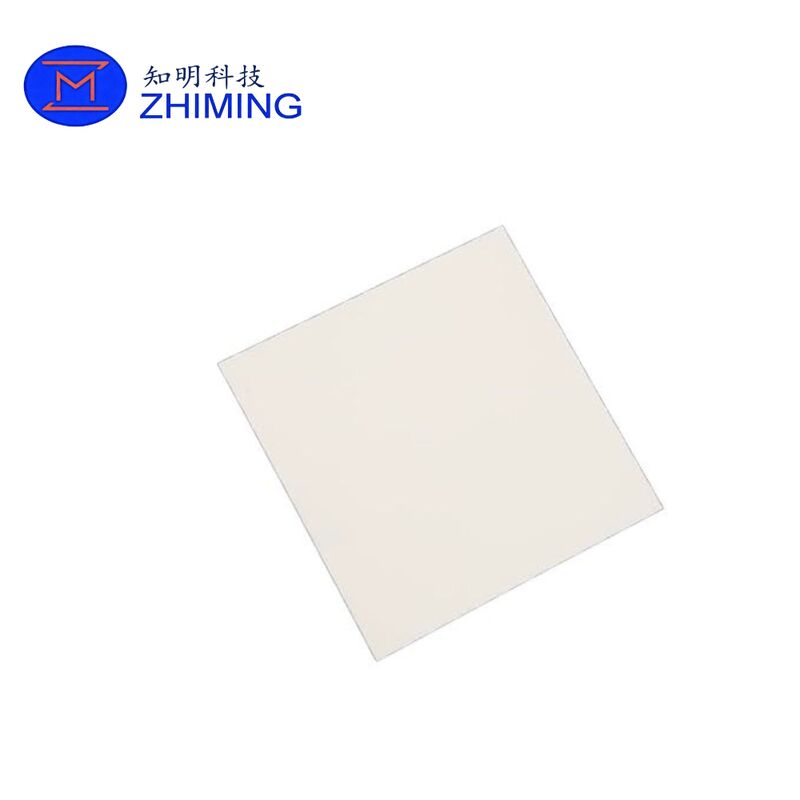

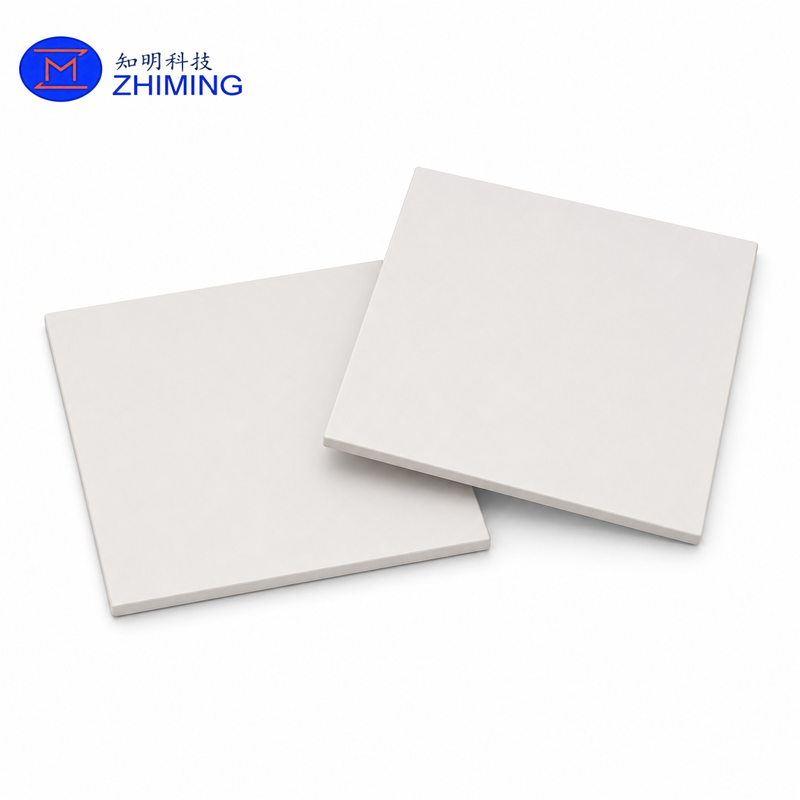

Alumina Ceramic Heat Sink Plate 310×310mm  Al₂O₃ Thermal Management Substrate

The 310 × 310 mm Alumina Ceramic Heat Sink Plate is a large-format thermal management substrate manufactured from high-purity Al₂O₃ ceramic material. Designed for high-power and high-reliability environments, it combines efficient heat dissipation, excellent electrical insulation, and long-term thermal stability in a single engineered component.

Compared with conventional metal heat sinks, alumina ceramic provides superior dielectric performance, excellent corrosion resistance, and stable operation under high-voltage and high-temperature conditions.

This ceramic thermal plate is widely used in power electronics, semiconductor equipment, LED modules, RF systems, and industrial heat dissipation applications where both heat transfer and insulation are critical.

Technical Specifications

Typical Applications

Power Electronics

• IGBT cooling systems
• MOSFET thermal management
• Power module substrates

Semiconductor Equipment

• Wafer handling fixtures
• Semiconductor support platforms
• Vacuum and process system components

LED Thermal Management

• High-power LED heat dissipation substrates
• Lighting thermal control modules

RF & High Voltage Systems

• Microwave equipment
• High-voltage insulation assemblies

Precision Industrial Equipment

• Electronic packaging structures
• Precision heat dissipation platforms

Why Choose Alumina Ceramic Heat Sink Plates?

• Excellent thermal management capability
• High dielectric strength and electrical insulation
• Superior wear resistance and mechanical stability
• Stable performance under high temperatures
• Chemical and corrosion resistant
• Low thermal expansion for dimensional stability
• Precision-ground surfaces for high-flatness applications
• Suitable for semiconductor and high-voltage systems

Available Material Grades

We provide multiple alumina purity options according to application requirements:

Precision Customization Services

Custom machining services are available according to drawings or specifications:

• Custom dimensions and thickness
• CNC machining
• Laser cutting
• Precision drilling
• Slot processing
• Surface polishing and lapping
• Metallization support:
  • Ag coating
  • Au coating
  • Ni plating
• Semiconductor-grade flatness processing

OEM and custom fabrication services are supported.

Quality Inspection & Packaging

Each ceramic heat sink plate undergoes strict inspection before shipment:

100% dimensional inspection

Flatness verification

Surface crack inspection

Defect and edge quality check

Packaging:

Shock-proof protective foam + export-grade carton packaging to ensure safe international transportation.

Frequently Asked Questions

Q1: Is alumina ceramic better than aluminum heat sinks?

Aluminum has higher thermal conductivity, but alumina ceramic offers much better electrical insulation, corrosion resistance, and high-temperature stability. It is ideal for applications where conductive metal heat sinks cannot meet safety or reliability requirements.

Q2: Can this ceramic plate be customized with holes or complex structures?

Yes. We support CNC machining, laser cutting, drilling, grooves, and custom geometries based on customer drawings.

Q3: Can alumina ceramic withstand high-temperature operation?

Yes. High-purity alumina ceramics maintain excellent structural stability under elevated temperatures and harsh environments. Proper installation design can ensure long-term service reliability.
